응용형 고장력 방수 전선관

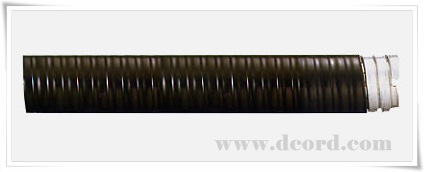

S.W type (FLEXIBLE CONDUIT FOR WATERPROOF)

제품특징
심한 진동에도 풀리지 않으며 특수 염화비닐로 피복이 되어 내한,내염,내난연,내습등이
뛰어나며 인장강도가 높습니다.
(사용온도범위 -20℃ ~ +100℃)

용 도
구부러진곳에서 사용이 편리하고, 전선의 피복보호 및 방수가 요구될때.
공작기계,산업기계,선박,중기,플랜트 공사등 압축강도가 높은 곳에 사용되며,
배선보호관으로 해수 수분의 유입이 염려되는 곳 건축물 지하습기가 많은 곳과 난연성이 요구되는 곳.

사용 콘넥터
방수용 아연 및 황동 콘넥터

S.W type 제품 특성
  개산 내경
(mm)		 개산 외경
(mm)		 포장단위
M / roll
10mm 9.7 15.0 50
12mm 12.2 17.4 50
16mm 15.8 21.7 50
22mm 20.8 26.1 50
28mm 26.4 32.8 50
36mm 35.0 41.3 30
42mm 40.0 47.4 20
54mm 51.3 59.4 20
70mm 62.9 72.1 10
82mm 77.9 87.5 10
92mm 88.9

100.2

 10
104mm 101.6 112.9 10
